The JCZ DLC2-V4 series control card features multiple functional upgrades — an all-in-one design with highly integrated functions and compact structure, significantly enhancing product reliability and user experience.
Comprehensive upgrades in precision, speed, and efficiency!
Function Upgrades
Upgraded to gigabit Ethernet communication, supporting control of up to 32 scan heads
Upgraded axis control rate to 4 MHz
Added 4 NPN/PNP compatible input IOs
Supports dual-head galvo control with XY2-100/SL2-100
Supports one-click firmware upgrades and unlimited reflashing

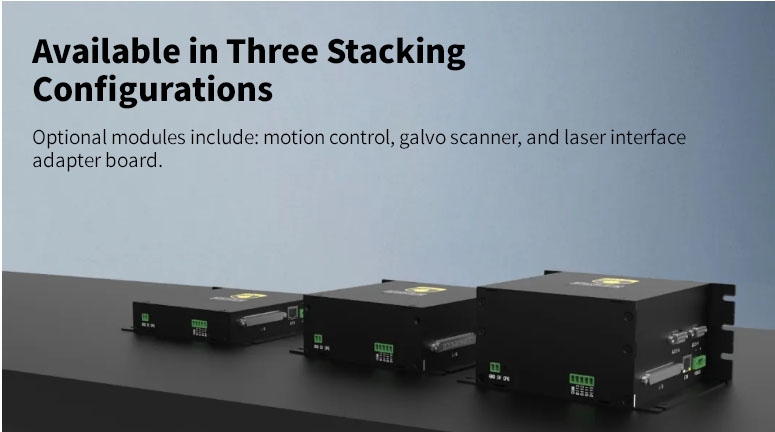

The upgrades in DLC2-V4 reduce device installation space by approximately 40%, avoiding electromagnetic interference caused by cable connections between adapter cards.
Reliability Improvements
100m long-distance network communication
Long laser emission prevention: Special mechanisms to prevent laser from continuously emitting due to poor software/hardware communication, ensuring safety
CE certified
Application Scenarios
High-Efficiency Processing Applications
Pre-prepared Data

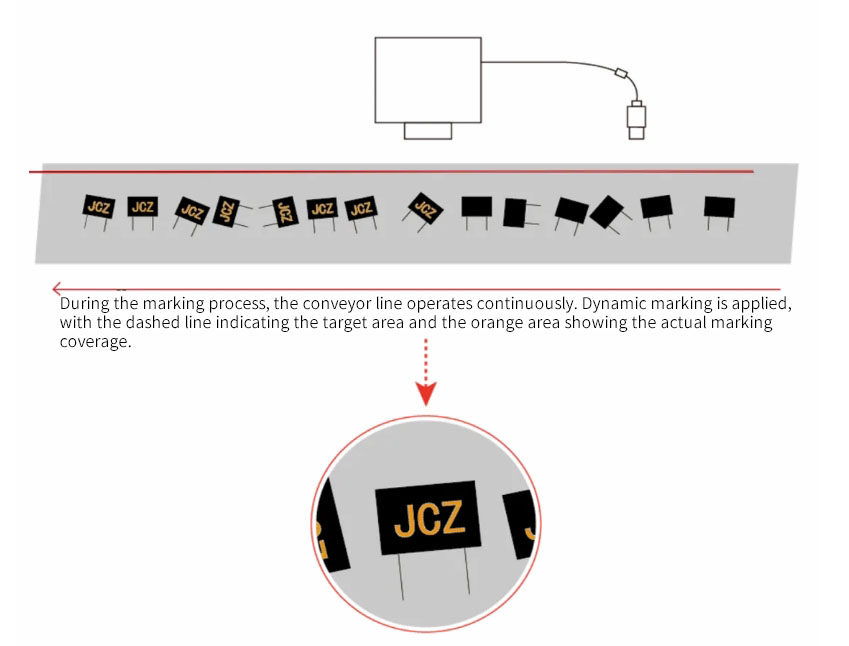

Data obtained from CCD recognition can be preloaded to the control card to form a job list, always ready for triggering.High-Speed Trigger Response
High-speed I/O response upgraded to microsecond level with stable operation — ensuring smooth processing even on a continuously running production line.

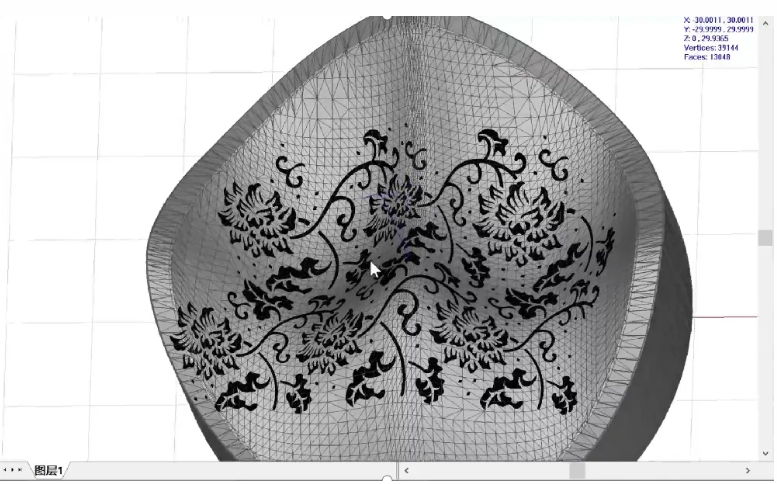

3D Applications
The 3D wrapping algorithm has been optimized several times to adapt to various complex surfaces.
Micro-Processing Applications

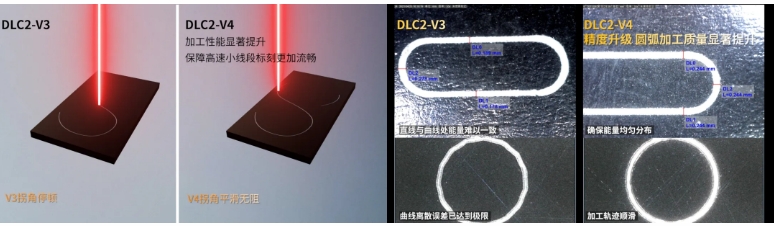

Arc processing
High-precision galvo control: 18-bit, 20-bit, and 24-bit resolutions

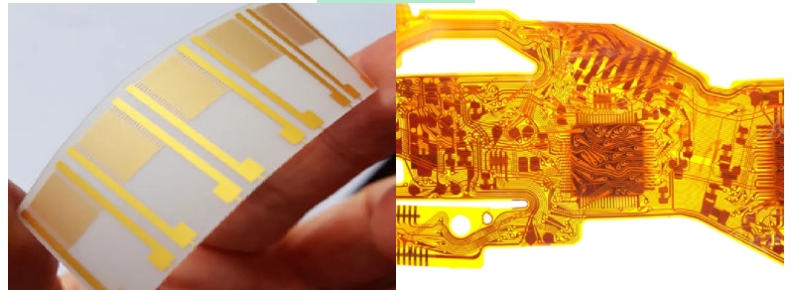

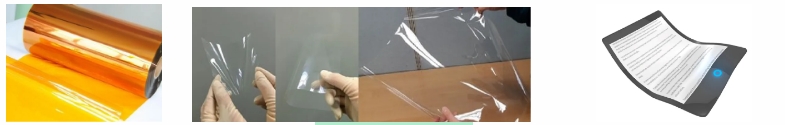

Cutting and Etching of Flexible Materials、
Cutting and Drilling of Brittle Materials
Company Introduction
Founded in 2004, Beijing JCZ Technology Co., Ltd. (Stock Code: 688291) is dedicated to the research and development of control software, systems, and components for the laser industrial processing field. JCZ is recognized as a “Little Giant” enterprise specializing in high-precision and innovative technologies by the Ministry of Industry and Information Technology of China. It has also been recognized as a “Little Giant” enterprise by the Beijing municipal government, a High-Tech Enterprise by the Beijing Municipal Science and Technology Commission, and a partner enterprise in the Fengtai District’s “Multiplying Growth and Cooperative Development” program.
Looking ahead, JCZ will continue to drive technological innovation and remain committed to building a leading “Beam Transmission and Control” technology platform. We aim to deliver integrated drive-and-control products and comprehensive solutions, providing high-quality products and services to system integrators and users worldwide. Our goal is to become a competitive and influential expert in beam transmission and control.
