FORMULA Ultra (UV)
| Parameter | 30W-50K | 40W-60K | 50W-60K |
| Wavelength (nm) | 355 | ||
| Average Power (W) | >30W @50kHz | >40W @60kHz | >50W @60kHz |
| Pulse Energy (μJ) | >600 | >660 | >830 |
| Specified Frequency (kHz) | 50 | 60 | |
| Repetition Rate Range (kHz) | 50–300 | ||
| Beam Quality (M²) | <1.2 | ||
| Operating Temperature (°C) | 5–40°C | ||
| Average Power Consumption (W) | <310 | <350 | <410 |
| Power Supply Requirement (VDC/W) | 24V / 600W | 24V / 1000W | |
| Weight (kg) | 21 | ||
FORMULA Ultra (Green Light)
| Parameter | 60W-50K | 80W-60K |
| Wavelength (nm) | 532 | |
| Average Power (W) | >60W @50kHz | >80W @60kHz |
| Pulse Energy (mJ) | >1.2 | >1.4 |
| Specified Frequency (kHz) | 50 | 60 |
| Repetition Rate Range (kHz) | 50–300 | |
| Beam Quality (M²) | <1.2 | |
| Operating Temperature (°C) | 5–40°C | |
| Average Power Consumption (W) | <600 | |
| Power Supply Requirement (VDC/W) | 24V / 1000W | |
| Weight (kg) | 16 | |
Discover FORMULA Ultra IP65 UV and green nanosecond Q-switched lasers featuring automatic crystal switching, CAS cavity cleaning system, intelligent mirror adjustment, and up to 90W green output for industrial precision applications.
Product Pictures
Product Introduction

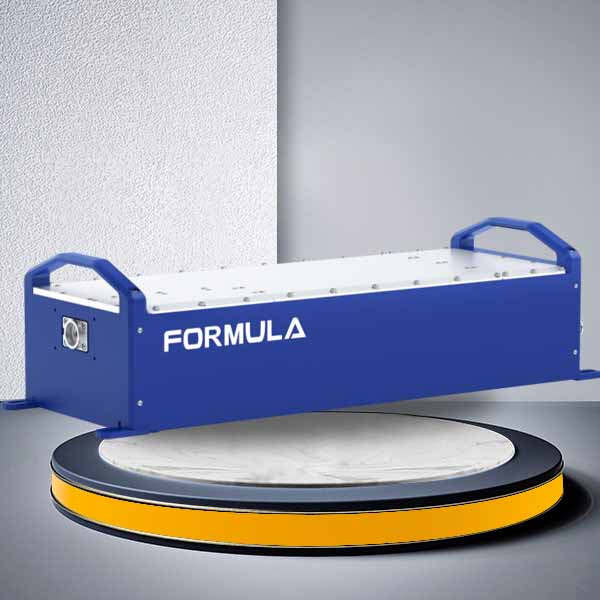

FORMULA Ultra is the next-generation nanosecond Q-switched laser series engineered for high-reliability industrial applications. Designed with enhanced environmental protection and intelligent power control, it provides stable, long-life performance for precision manufacturing industries.
Ultra UV Version – Long Life & Intelligent Recovery
The UV model integrates automatic crystal switching technology, allowing internal crystal position replacement to quickly restore output performance and reduce downtime.
Its CAS cavity gas self-cleaning system ensures optical component cleanliness, minimizing contamination risks and extending operational lifetime.
Built with IP65 industrial-grade protection, the laser resists dust, moisture, and extreme environmental conditions.
Ultra Green Version – High Power & Ultra Stability
The green laser version delivers ultra-high output power up to 90W+, ideal for advanced material processing and high-efficiency production lines.
The intelligent rear cavity mirror adjustment system continuously regulates crystal temperature and internal optical alignment through embedded algorithms, maintaining long-term stability with <2% power variation.
With IP65 sealing protection, the Ultra series is ready for demanding production environments.
FORMULA Ultra is widely used in PCB depaneling, ceramic drilling, carbon fiber cutting, semiconductor processing, and precision micro-machining.
Application Cases
3D Printing
Electronics & Electrical Appliances
Medical Industry
Dental Applications
Aerospace, etc.
Packaging Industry
Paper Packaging
Glass Packaging
Plastic Packaging
Pharmaceutical Marking
Metal Packaging, etc.
3C Marking
Marking on Mobile Phone Back Covers
Charger Marking
PCB Marking
Cable Marking, etc.
