AMT UV Picosecond Laser | Industrial High-Power Laser for OLED & FPC Cutting

Industrial deep UV picosecond laser

AMT UV Picosecond Laser System | High-Power Precision Laser for Industrial Applications

Customizable beam circularity above 95%
Excellent beam quality (M² < 1.1)
Supports external analog voltage power control
Fully automatic crystal switching with real-time power display
Supports status monitoring and intelligent diagnostics
Optional edge trigger and level trigger control modes
Supports pulse waveform editing function

YEARS EXPERIENCE

EXPERIENCED EMPLOYEES

R&D AND SUPPORT ENGINEERS

GLOBAL CUSTOMERS

Specifications
Product Description

Specifications

AMT 355

Parameter Specification	5W-500K	15W-500K	30W-1000K	50W-1000K
Wavelength (nm)	355
Average Power (Watts)	> 5W @ 500KHz	> 15W @ 500KHz	> 30W @ 1000KHz	> 50W @ 1000KHz
Pulse Energy (µJ)	>10	>30	>30	>50
Specified Frequency (kHz)	500		1000
Repetition Rate Range (kHz)	300-1000		500-2000	500-2500
Pulse Width (ps)	<12
Beam Quality (M²)	≤1.1
Beam Roundness (%)	> 90 (customizable to >95%)
Beam Diameter (mm)	3 ~ 4		3 ~ 3.5
Divergence Angle (mRad)	< 2
Pointing Stability (µrad/°C)	<20
Polarization Ratio	100:1 Linear, Horizontal
Pulse Stability (%RMS)	<2
Average Power Stability (% over 12 hours)	<3
Cold Start Warm-up (mins.)	<40
Standby Warm-up (mins.)	<15
Ambient Temperature (°C)	15-35°C
Ambient Humidity (%)	20 to 80, Non-condensing
Storage Temperature (°C)	20 to 50
Storage Humidity (%)	20 to 80, Non-condensing
Power Supply Requirement (VDC/Watts)	24/600		24/1000	36/1500
Communication Protocol	RS232
Cooling Method	Water

Product Description

Discover the AMT Series UV picosecond lasers with 15W–50W power, customizable beam roundness >95%, M²<1.1, and intelligent control. Perfect for OLED cutting, FPC processing, and precision smartphone antenna applications.

Product Pictures

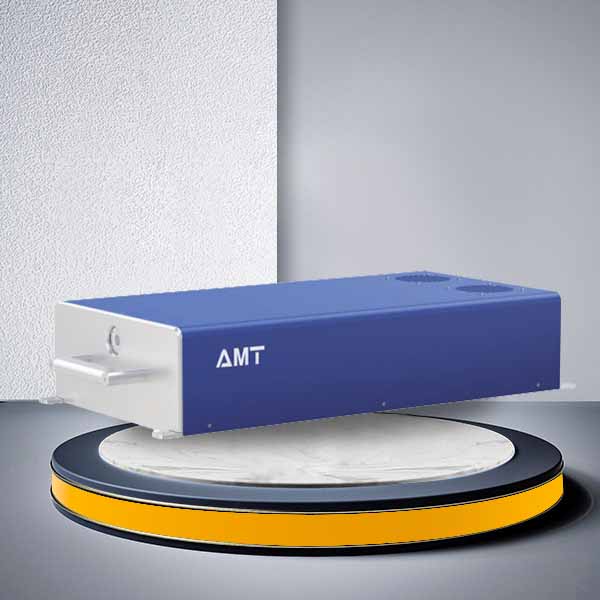

amt series uv picosecond laser – high power, custom beam & intelligent control

Product Introduction

AMT Series UV picosecond lasers are engineered for industrial precision processing, offering superior beam quality (M²<1.1), low astigmatism, and high beam roundness (>95%). The system provides stable pulse output with customizable pulse shapes to suit various manufacturing needs.

Equipped with automatic crystal switching, real-time power display, and external voltage control, the AMT Series supports multiple triggering options including rising/falling edge and high/low-level triggers. Advanced diagnostics and state monitoring ensure reliability and minimize downtime.

The third-generation AMT-355 lasers feature optimized frequency-tripling crystal technology and a compact integrated design, reducing size by half compared to previous models while maintaining high stability. Power ranges from 15W to 50W, operating frequency from 100KHz to 2.5MHz, with up to 10MHz customizable. Single pulse energy exceeds 50μJ at 1MHz, making it ideal for OLED cutting, PI/FPC laser processing, and smartphone antenna manufacturing.
