In the world of precision laser processing, speed and accuracy are paramount. Whether you’re marking, engraving, cutting, or welding, the ability to direct a laser beam with microsecond precision is what separates high-performance systems from the rest. At the heart of this precision lies the 3D laser galvo system—a core component in modern laser solutions that utilizes galvo scanners and dynamic galvo systems to revolutionize laser beam control.

What is a Galvo Laser?

A galvo laser system uses a pair of high-speed galvanometer motors (galvos) to steer mirrors that control the direction of a laser beam. Instead of physically moving the workpiece or the laser head, galvo systems adjust the beam’s position by rapidly rotating the mirrors. This design allows for ultra-fast and highly accurate laser movement, ideal for applications like:

Because of its speed and precision, galvo laser technology is widely used in both industrial automation and scientific research.

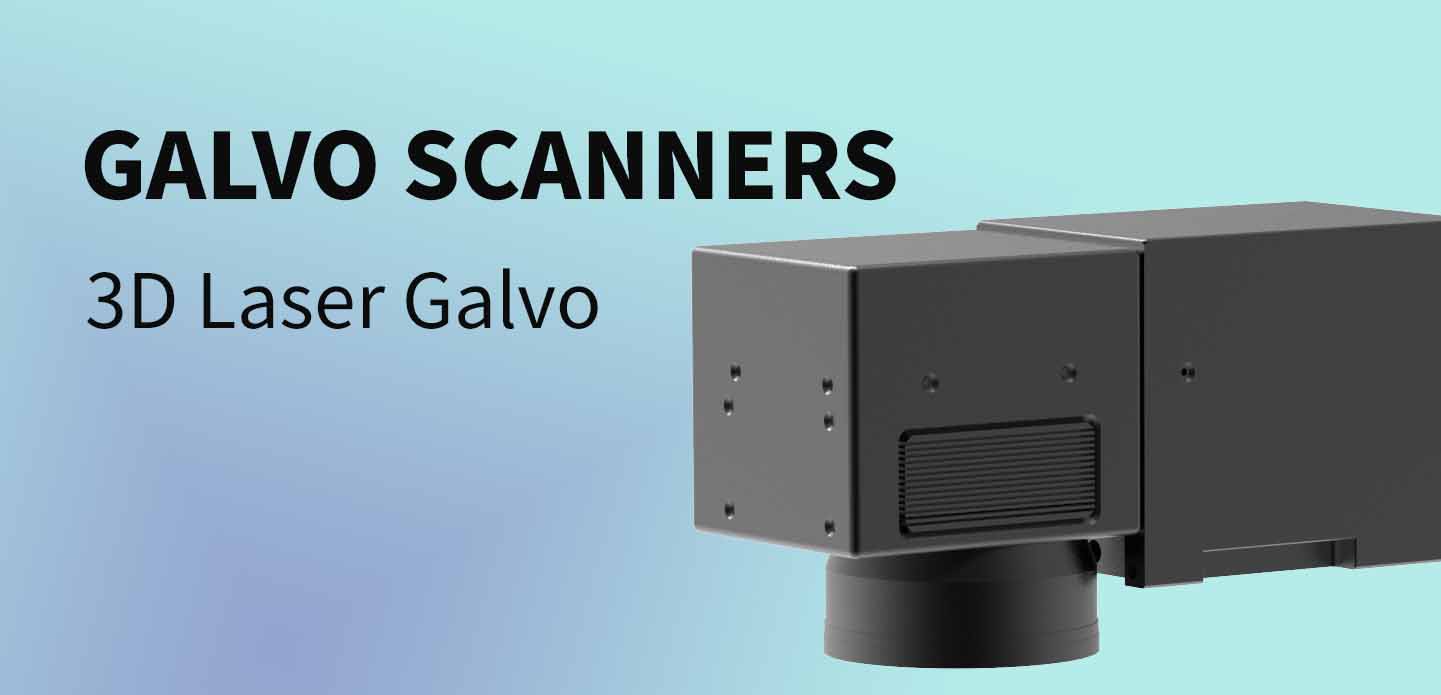

The Power of 3D Laser Galvo Technology

While traditional galvo systems operate in a flat 2D plane, a 3D laser galvo introduces an additional axis of control—allowing for dynamic focus adjustments across uneven or curved surfaces. This is achieved by integrating a Z-axis actuator or a focus lens module that works in harmony with X and Y galvo scanners.

The benefits of 3D galvo systems include:

  • Depth compensation for curved or sloped materials

  • Expanded marking area without mechanical movement

  • Improved beam quality across the entire workspace

  • More complex pattern engraving on multi-dimensional objects

These systems are commonly deployed in 3D engraving, deep etching, and variable-depth laser processing tasks, where uniform focus across the surface is crucial.

Galvo Scanners: Speed Meets Stability

Galvo scanners are the key components of any galvo system. A galvo scanner uses electromagnetic torque motors that rotate mirrors with high precision. Each axis typically includes:

  • A galvanometer (servo motor)

  • A position detector for closed-loop feedback

  • A mirror optimized for laser wavelengths

Together, X and Y galvo scanners can direct the laser beam to any coordinate within the scanning field at speeds exceeding several meters per second. Their compact size and non-inertial operation allow for ultra-fast vector scanning—ideal for batch production environments.

Inside the Galvo System: Components and Control

A complete galvo system typically includes:

  • Galvo scanner head (X, Y, and optionally Z axes)

  • Laser source (fiber, CO2, UV, etc.)

  • F-theta lens for flat field correction

  • Control board and software (such as EZCAD or proprietary controllers)

These components work together seamlessly to convert digital design files into real-time beam movements. With the help of dedicated control software, users can import vector graphics, set laser parameters, and automate multi-layer or batch operations with ease.

Applications of 3D Galvo Laser Systems

The combination of 3D control and galvo scanning opens up new possibilities across various industries:

  • Electronics: Marking on curved surfaces like cables or connectors

  • Medical: Precision engraving on surgical tools and implants

  • Automotive: Deep engraving on metal molds and dashboards

  • Packaging: High-speed coding and serial number marking

  • Jewelry: 3D pattern engraving on curved metal surfaces

With high reliability and low maintenance, 3D galvo laser systems help businesses enhance both productivity and product quality.

Conclusion

The 3D laser galvo system is more than just a high-speed scanner—it’s the brain of modern laser systems, enabling real-time, ultra-precise beam control over complex geometries. From industrial production to creative design, the combination of galvo lasers, galvo scanners, and smart galvo systems continues to redefine what’s possible in laser processing.

If you’re looking to upgrade your laser setup, investing in a galvo-based solution can dramatically increase efficiency, accuracy, and capability—setting your operations apart in an increasingly competitive market.
