HF-B-ELP SERIES
| Model | HF-B-ELP20 | HF-B-ELP30 | HF-B-ELP50 |
| Laser Generator | |||
| Laser Power(W) | 20W | 30W | 50W |
| Frequency(kHz) | 1-600kHz | 1-600kHz | 1-600kHz |
| Pulsed Width(ns) | 200ns | 200ns | 200ns |
| Control System | |||
| Software | EZCAD2.14.11-LITE | ||
| Controller | FBLI-B-LV4 | ||
| Scanning System | |||
| Max. Marking Speed(mm/s) | 6000mm/s (12000mm/s optional) | ||
| Max. Marking Size (mm) | 160*160mm （70*70, 100*100,200*200,300*300mm optional) | ||
| Others | |||
| Power Supply | 110V/220V Optional | ||
| Cable Length | 2M(3/4/5M Optional) | ||
| Adjustable Z Lift Travel | 500mm(700mm Optional) | ||
| Cooling Method | Air Cooling | ||
HF-B-EM7 SERIES
| Model | HF-B-EM720 | HF-B-EM730 | HF-B-EM760 | PF-EM780 | HF-B-EM7100 |
| Laser Source | |||||
| Laser Power(W) | 20W | 30W | 60W | 80W | 100W |
| Frequency(kHz) | 1-4000kHz | 1-4000kHz | 1-4000kHz | 1-4000kHz | 1-4000kHz |
| Pulsed Width(ns) | 2-350ns | 2-350ns | 2-500ns | 2-500ns | 2-500ns |
| Control System | |||||
| Software | EZCAD2.14.11-LITE | ||||
| Controller | FBLI-B-LV4 | ||||
| Scanning System | |||||
| Max. Marking Speed(mm/s) | 6000mm/s (12000mm/s optional) | ||||
| Max. Marking Size (mm) | 160*160mm （70*70, 100*100,200*200,300*300mm optional) | ||||
| Others | |||||
| Power Supply | 110V/220V Optional | ||||
| Cable Length | 2M (3/4/5M Optional) | 3M(4/5M Optional) | |||
| Adjustable Z Lift Travel | 500mm(700mm Optional) | ||||
| Cooling Method | Air Cooling | ||||
HF-B-QS SERIES
| Model | HF-B-QS20 | HF-B-QS30 | HF-B-QB50 |
| Laser Generator | |||
| Laser Power(W) | 20W | 30W | 50W |
| Frequency(kHz) | 30-60kHz | 30-60kHz | 50-100kHz |
| Pulsed Width(ns) | 130ns | 130ns | 130ns |
| Control System | |||
| Software | EZCAD2.14.11-LITE | ||
| Controller | FBLI-B-LV4 | ||
| Scanning System | |||
| Max. Marking Speed(mm/s) | 6000mm/s (12000mm/s optional) | ||
| Max. Marking Size (mm) | 160*160mm（70*70, 100*100,200*200,300*300mm optional) | ||
| Others | |||
| Power Supply | 110V/220V Optional | ||
| Cable Length | 3M(4/5M Optional) | ||
| Adjustable Z Lift Travel | 500mm(700mm Optional) | ||
| Cooling Method | Air Cooling | ||
The JCZ High-Precision Handheld Fiber Laser Marking System is engineered for exceptional marking performance on a variety of industrial metals. Equipped with a high-quality fiber laser source, this system ensures sharp, permanent marks on large, heavy, or irregularly shaped workpieces. It is perfect for marking logos, barcodes, serial numbers, part identification, and much more. Combining portability with industrial-grade power and precision, this system is ideal for on-site operations and heavy-duty applications.
Designed with ergonomic flexibility, the Portable Handheld Fiber Laser Marking Machine is a versatile solution for industries such as aerospace, automotive, oil and gas, and metal fabrication. Whether you are working with stainless steel, aluminum, brass, or coated metals, this system guarantees unmatched precision and durability for industrial metal marking.
Key Features
- High-Precision Output: Delivers crisp, high-contrast marks on even the toughest metal surfaces.
- Ergonomic Handheld Design: Allows flexible, on-site operation, perfect for parts that are difficult to move or require marking in tight spaces.
- Industrial-Grade Reliability: Built for demanding environments like aerospace, automotive, and metalworking industries, ensuring long-lasting performance.
- Portable & Lightweight: Weighing only a few kilograms, this handheld system is easy to carry and use in various industrial settings.
- Adjustable Marking Speed: With speeds of up to 6000mm/s (12000mm/s optional), it is perfect for quick and efficient marking in high-volume production environments.
Request a Quote: Get a personalized quote for the High-Precision Handheld Fiber Laser Marking System with custom options and OEM solutions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Laser Power (W) | 20W – 100W |
| Frequency (kHz) | 30 – 100 kHz |
| Pulsed Width (ns) | 130 ns |
| Max. Marking Speed (mm/s) | 6000 mm/s (12000 mm/s optional) |
Application Industries
- Automotive: VIN codes, engine parts, chassis numbers, and other vehicle components.
- Aerospace: Aircraft components, turbine parts, and other aviation-related metal parts.
- Metal Fabrication: Large metal panels, structural parts, and customized metalwork.
- Oil & Gas: Pipeline fittings, heavy valves, and other metal equipment used in the oil and gas industry.
- Tool Manufacturing: Hand tools, cutting tools, and other industrial tools that require durable marking.
Key Benefits
- Portable Handheld Design: Perfect for on-site applications where mobility and flexibility are required, especially when marking heavy or hard-to-move items.
- Customization Support: Capable of marking logos, serial numbers, QR codes, and barcodes, offering a tailored marking solution for various applications.
- Durable & Reliable: Built to withstand the harshest environments, providing years of dependable service in industrial manufacturing and field applications.
- Easy to Operate: With a user-friendly interface and intuitive software, this fiber laser marking system is simple to use for both experienced operators and beginners.
- Cost-Effective: With no need for consumables (such as ink or chemicals), this system is an eco-friendly and cost-saving solution for long-term industrial use.
FAQ
Q1: What materials can the High-Precision Handheld Fiber Laser Marking System mark?
This handheld fiber laser marking system is designed to work with a wide range of industrial metals, including stainless steel, aluminum, brass, and coated metals. It is perfect for marking hard metals and large metal workpieces.
Q2: How portable is the system?
Weighing just 4kg, the system is highly portable, making it easy to transport and use for on-site marking tasks. It’s designed for industries that require flexibility and mobility in their operations.
Q3: How fast is the marking speed of the laser machine?
The High-Precision Handheld Fiber Laser Marking System offers a maximum marking speed of 6000mm/s, with an optional upgrade to 12000mm/s for high-volume production environments.
Q4: Does the system come with a warranty?
Yes, the system comes with a one-year warranty, excluding quick-wear parts. This ensures that your machine will be fully supported for a year after purchase.
Q5: Can I customize the laser marking system for my specific needs?
Yes, we offer custom solutions for your marking needs, including OEM options and custom design support. Contact us to discuss your specific requirements.
Contact Us Today
Reach out to our team for more information and to learn how this handheld fiber laser marking machine can enhance your manufacturing process.
Ready to purchase the High-Precision Handheld Fiber Laser Marking System? Contact us for competitive pricing and custom solutions for your specific needs.

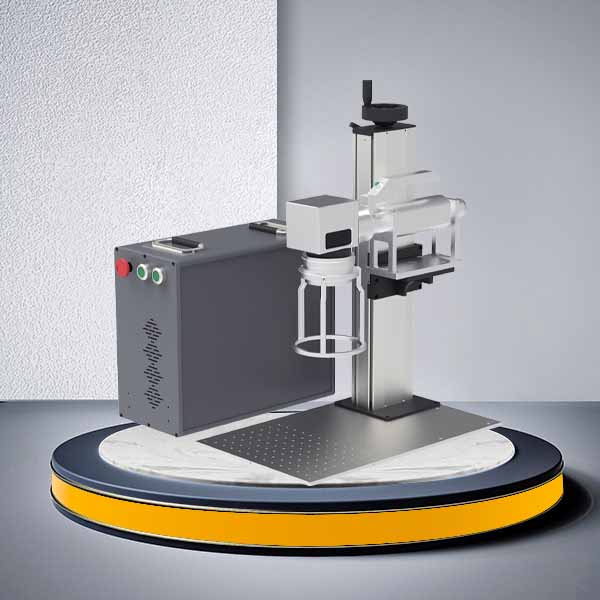

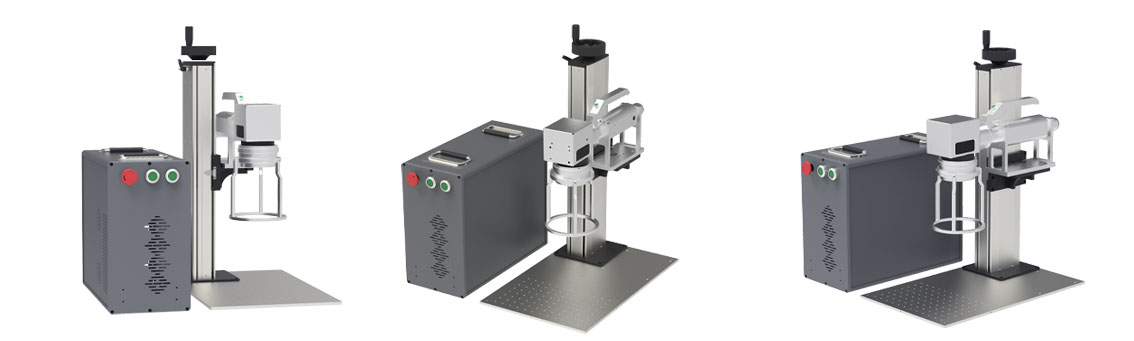

Product Image
Product Introduction
The JCZ High-Precision Handheld Fiber Laser Marking System is engineered to deliver exceptional marking performance on a variety of industrial metals. Equipped with a high-quality fiber laser source, this system ensures sharp, permanent marks on large, heavy, or irregularly shaped workpieces.
Ideal for logos, barcodes, serial numbers, and part identification, it combines portability with industrial-grade power and precision.
Key Features:
High-Precision Output: Delivers crisp, high-contrast marks even on tough metal surfaces.
Ergonomic Handheld Design: Allows flexible, on-site operation for parts that are difficult to move.
Industrial-Grade Reliability: Perfect for demanding environments such as aerospace, automotive, and metalworking.
Application Industries:
Automotive: VIN codes, engine parts, chassis numbers
Aerospace: Aircraft components, turbine parts
Metal Fabrication: Large metal panels, structural parts
Oil & Gas: Pipeline fittings, heavy valves
Tool Manufacturing: Hand tools, cutting tools
Whether you’re marking stainless steel, aluminum, brass, or coated metals, this system provides unmatched performance, durability, and versatility.
The portable fiber laser etcher is widely applicable in large equipment manufacturing industries such as rail tracks, wheel rims, train manufacturing, aircraft production, hydro generators, wind turbines, steam turbines, engines, large bearings, shipbuilding, and large molds.
After Sales Service
1.All of our machine will be fully-checked by our quality control department before the shipment.We guarantee all of our laser machines have a one-year warranty (quick-wear parts notincluded).
2.Training details: operation principles, system and structure, safety and maintenance, softwarethe processing technique, and so on.
3.Numerous feedback from our clients have proven that our laser machines are stable inperformance with rare malfunction. However, we would like to handle it as follows oncemalfunction occurs:
a.We guarantee that we will give you a clear reply within 24 hours.
b.Customer service staff will assist and guide you to analyze the malfunction in order to locatethe cause.
c.If the malfunction is caused by improper operation on software and other soft faults, we willhelp solve the problem on line.
d.We will offer plenty of online supports, just like detailed technical and installation instructionsby email,video, telephone. (Training by team viewer)
