FORMULA (S) UV
| Parameter | 15W-30K | 20W-30K |
| Wavelength (nm) | 355 | |
| Average Power (Watts) | >15W @30kHz | >20W @30kHz |
| Pulse Energy (μJ) | >100 | >160 |
| Specified Frequency (kHz) | 30 | |
| Repetition Rate Range (kHz) | 10–300 | |
| Beam Quality (M²) | <1.2 | |
| Operating Temperature (°C) | 15–35 | |
| Average Power Consumption (Watts) | <110 | <130 |
| Power Supply Requirement (VDC/W) | 24V / 450W | |
| Weight (kg) | 7.2 | |
FORMULA UV
| Parameter | 15W-50K | 20W-60K | 25W-50K |
| Wavelength (nm) | 355 | ||
| Average Power (Watts) | >15W @50kHz | >20W @60kHz | >25W @50kHz |
| Pulse Energy (μJ) | >300 | >330 | >500 |
| Specified Frequency (kHz) | 50 | 60 | 50 |
| Repetition Rate Range (kHz) | 10–300 | ||
| Beam Quality (M²) | <1.2 | ||
| Operating Temperature (°C) | 5–40 | ||
| Average Power Consumption (Watts) | <260 | <310 | <350 |
| Power Supply Requirement (VDC/W) | 24V / 450W | 24V / 600W | |
| Weight (kg) | 20 | ||
FORMULA Green Light
| Parameter | 20W-50K | 35W-50K | 50W-50K |
| Wavelength (nm) | 532 | ||
| Average Power (Watts) | >20W @50kHz | >35W @50kHz | >50W @50kHz |
| Pulse Energy (μJ) | >400 | >700 | >1000 |
| Specified Frequency (kHz) | 50 | ||
| Repetition Rate Range (kHz) | 10–300 | ||
| Beam Quality (M²) | <1.2 | ||
| Operating Temperature (°C) | 15–35 | ||
| Average Power Consumption (Watts) | <260 | <310 | <350 |
| Power Supply Requirement (VDC/W) | 24V / 260W | 24V / 600W | |
| Weight (kg) | 20 | ||
FORMULA series high-stability nanosecond Q-switched laser features compact design, superior beam quality, crystal auto-switching, smart power optimization, and real-time feedback. Ideal for UV and green laser applications including marking, engraving, and precision processing.

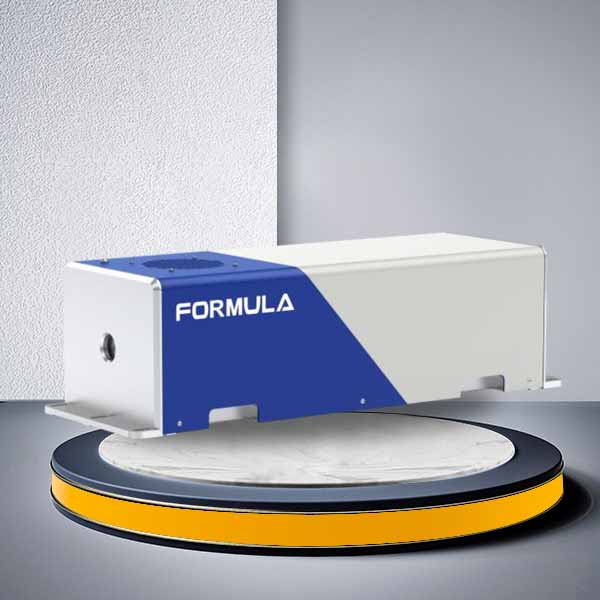

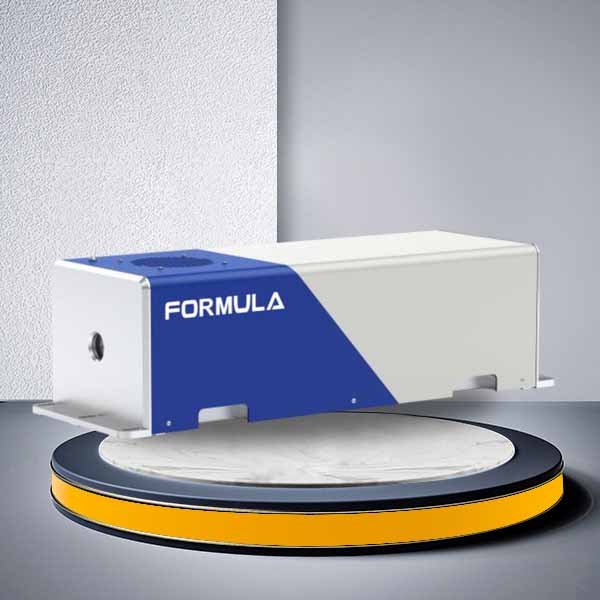

Product Pictures
Product Introduction
Compact & Lightweight: Reduced size and light body, ideal for system integration.
Stable Power Performance: Integrated optical and electronic drive system for strong anti-interference capability.
Excellent Optical Performance: Industry-leading beam quality (M²<1.2), suitable for high-precision applications.
Crystal Auto-Switching: Laser crystal position automatically adjusts to maintain consistent output power.
Smart Power Optimization: Built-in intelligent algorithm ensures long-term power stability with variation <2%.
Real-Time Power Monitoring: GUI software displays live laser power for easy monitoring and control.
Application Cases
3D Printing
Electronics & Electrical Appliances
Medical Industry
Dental Applications
Aerospace, etc.
Packaging Industry
Paper Packaging
Glass Packaging
Plastic Packaging
Pharmaceutical Marking
Metal Packaging, etc.
3C Marking
Marking on Mobile Phone Back Covers
Charger Marking
PCB Marking
Cable Marking, etc.
